electrosonic

Re: Pictures!
« Reply #18800 on: February 25, 2012, 09:24:34 PM »
Not a finished pedal - hope that's OK.

My prototype board inspired by the Beavis Board. The pcb is an tl072 buffer into a 4053 for switching. The other half of the tl072 is a low impedance 1/2 V+ buffer for biasing.  I figured out a cool way to mount the posts using two 3 way binding posts back to back. The pots screw into place and I can swap them out in a matter of seconds - there is room for five 16mm pots there.

The yellow box to the left is a lm386 amp with a 3 inch speaker, unfortunately I have to take the board to the practise space to try things out at a decent volume.

The board has a Rat breadboarded on it - I spent 45 minutes trying to figure out why all the schematics on the web have the tone control wired backwards. I finally read that the Rat "Filter" is supposed to work the opposite way from a regular tone control.

Andrew.





« Last Edit: February 25, 2012, 09:42:35 PM by electrosonic »

nomorebetts

Re: Pictures!
« Reply #18801 on: February 25, 2012, 10:51:26 PM »
Nice one electrosonic !  I gotta sort something out like this for myself.
« Last Edit: February 25, 2012, 11:03:58 PM by nomorebetts »
I like Big Muffs! and I cannot lie, you other brothers can't deny...

_dB

Re: Pictures!
« Reply #18802 on: February 26, 2012, 04:25:58 AM »
The binding posts for pots are great idea!

electrosonic

Re: Pictures!
« Reply #18803 on: February 26, 2012, 06:03:45 AM »
The alpha pots with the straight pins have 0.2" spacing and are a perfect fit.




Andrew.



davent

Re: Pictures!
« Reply #18804 on: February 26, 2012, 06:29:19 AM »
Electrosonic, excellent solution to the pot conundrum! Well done!

dave
"If you always do what you always did- you always get what you always got." - Unknown

Slade

Re: Pictures!
« Reply #18805 on: February 26, 2012, 10:40:45 AM »
Tri-Vibe





Cheers!

deadastronaut

Re: Pictures!
« Reply #18806 on: February 26, 2012, 10:45:39 AM »
stunning work fernando!.....the etch master!.... :icon_cool: :icon_cool: :icon_cool:
http://www.youtube.com/user/100roberthenry
http://deadastronaut.wix.com/index

^ CHASM REVERB / TREMSHIFTER / FAZE FILTER/ABDUCTOR II DELAY pcb's + WAH LIGHT PLATES.

FiveseveN

Re: Pictures!
« Reply #18807 on: February 26, 2012, 12:01:41 PM »
That graphic has some sexy topology! :D
Ignorance more frequently begets confidence than does knowledge. (Charles Darwin)

Slade

Re: Pictures!
« Reply #18808 on: February 26, 2012, 02:44:41 PM »
stunning work fernando!.....the etch master!.... :icon_cool: :icon_cool: :icon_cool:
I knew you'd like it ;D

That graphic has some sexy topology! :D
It has its curves... it's a sexy vibe ;)

GŁero

Re: Pictures!
« Reply #18809 on: February 26, 2012, 04:36:12 PM »
@ Slade - Beatiful job!!!  :icon_wink:



























Curing the infection one bullet at a time.

kupfer_m

Re: Pictures!
« Reply #18810 on: February 27, 2012, 07:29:54 AM »
Tri-Vibe

Cheers!

Absolutely stunning!!!

ca cat

Re: Pictures!
« Reply #18811 on: February 27, 2012, 11:45:57 AM »

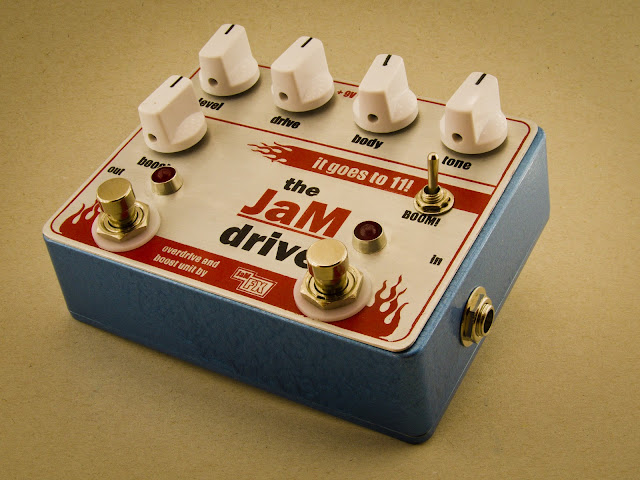

JaM drive - based on BSIAB, heavil modified; from crunch to wild british tone. With mosfet boost for solos or as standalone boost.


Notice those nice white washers? They look cool :icon_twisted:
Jamin' with JaM IT FX - www.jamitfx.com

tasos

Re: Pictures!
« Reply #18812 on: February 27, 2012, 11:53:42 AM »
It goes to 11! ;D

http://www.jampedals.com/  ???

ca cat

Re: Pictures!
« Reply #18813 on: February 27, 2012, 12:00:52 PM »
JaM FX is our name... not the same, by sound an design. They are from Greece, and we from Slovenia. Sorry, we didn't know they existed, when we started making pedals.

And a gut shot:
Jamin' with JaM IT FX - www.jamitfx.com

tasos

Re: Pictures!
« Reply #18814 on: February 27, 2012, 12:31:03 PM »
Nice!So tidy...

I saw you got some jacks from tayda....
I was wondering if these are worth their price.


I have bought some of the plastic ones(insulated) and hell yeah they are!

ca cat

Re: Pictures!
« Reply #18815 on: February 27, 2012, 12:51:16 PM »
 :icon_mrgreen:
Uf, this mess isn't tidy at all ;D You should see what is hiding beneath the pcb-s :icon_smile: And there is an error on the PCB, so i had to use green wire to corect it ;D

I love everything from tayda! Those jacks are great! Great quality and sturdy!

Quote
Posted by: tasos
Insert Quote
It goes to 11!

Yes, Nigel Tufnel insipred me for that one! I built it, and now nobody can touch it! Not even look at it :icon_mrgreen:
Jamin' with JaM IT FX - www.jamitfx.com

mr_deadmaxxx

Re: Pictures!
« Reply #18816 on: February 27, 2012, 05:08:33 PM »
just some guts..not in an inclosure yet.  :)













skullservant

Re: Pictures!
« Reply #18817 on: February 27, 2012, 05:42:58 PM »
Needed another SHO, wanted to put together one that was a bit more fun than previous builds, so I terminal stripped this one!



deadastronaut

Re: Pictures!
« Reply #18818 on: February 27, 2012, 09:20:23 PM »


Notice those nice white washers? They look cool :icon_twisted:

no they don't.... >:(

at least your locking washers are underneath though!... ;)
http://www.youtube.com/user/100roberthenry
http://deadastronaut.wix.com/index

^ CHASM REVERB / TREMSHIFTER / FAZE FILTER/ABDUCTOR II DELAY pcb's + WAH LIGHT PLATES.

ca cat

Re: Pictures!
« Reply #18819 on: February 27, 2012, 09:45:39 PM »


Notice those nice white washers? They look cool :icon_twisted:

no they don't.... >:(

at least your locking washers are underneath though!... ;)


yes, but they serve the purpose... My faceplates aren't scratched at all
Jamin' with JaM IT FX - www.jamitfx.com
