« Reply #19340 on: May 06, 2012, 10:28:08 PM »

That looks great Dave! I like the parchment-like texture and depth you have going there.
Sort of paper mache look as well. Dig it.
Logged

Basic Audio Pedals
www.basicaudio.net/
Earthscum
Posts: 1932


David Edgar


Re: Pictures!
« Reply #19341 on: May 06, 2012, 10:32:25 PM »

So you paint, apply your image (face down) to the wet paint, wait for it to dry and soak the paper off?
Logged

Give a man Fuzz, and he'll jam for a day... teach a man how to make a Fuzz and he'll never jam again!

http://www.facebook.com/Earthscum
Govmnt_Lacky
Posts: 4467


I'M ONLY GETTING CLEAN OUTPUT!!!!


Re: Pictures!
« Reply #19342 on: May 07, 2012, 05:11:00 AM »



Not only Made in Canada..... but in the basement as well!!!

MAJOR MOJO THERE  Grin

Beautiful work Dave!!! Me likey  Shocked
Logged

A Veteran is someone who, at one point in his or her life, wrote a blank check made payable to The United States of America
for an amount of ‘up to and including my life.’
kato
Posts: 74


neat wiring is for beginners


Re: Pictures!
« Reply #19343 on: May 07, 2012, 05:16:33 AM »

Kato... nice build.
Where did you find those amazing knobs?

Thanks. The knobs are a mystery. I asked the guy who sold them to me; he doesn't remember: 'probably ebay' he says.

Kilo makes similar black aluminum knobs but they're pricey: Digikey 226-1113-ND, and 226-4021-ND.
Logged

If school won't teach you how to fight for what's needed
They're teaching you to go through life and get cheated.
Colonel Angus
Posts: 305


Brian M. - Cincinnasty, OH


WWW
Re: Pictures!
« Reply #19344 on: May 07, 2012, 09:51:29 AM »

Wow Dave!! That's super awesome and very original. Can you go into detail about the process? Did you paint and then do the acrylic transfer? I have been messing with decoupage and this would be an ideal method to apply text and labeling.
Logged

Why should you not have 90o angles? Do the electrons bunch up in the corners?
slacker
Posts: 5508

Ian M. - England


Re: Re: Pictures!
« Reply #19345 on: May 07, 2012, 10:37:26 AM »

That looks great Dave. Is it the same sort of technique they talk about here http://www.ebsqart.com/Education/Articles/Mixed-Media-and-Collage/9/Live-Studio-Image-Transfer/37/ sounds like fun.
« Last Edit: May 07, 2012, 11:42:26 AM by slacker » Logged
tasos
Posts: 792



Re: Pictures!
« Reply #19346 on: May 07, 2012, 11:17:50 AM »

Kato... nice build.
Where did you find those amazing knobs?

Thanks. The knobs are a mystery. I asked the guy who sold them to me; he doesn't remember: 'probably ebay' he says.

Kilo makes similar black aluminum knobs but they're pricey: Digikey 226-1113-ND, and 226-4021-ND.

Probably one of these?:
http://www.ebay.com/itm/4pcs-15x15mm-1-4-Black-FOR-BOSS-PEDAL-SHINY-ALLOY-KNOB-5336-/120908415090?pt=Guitar_Accessories&hash=item1c26b40072
http://www.ebay.com/itm/1-40x22mm-Black-FOR-BOSS-PEDAL-CD-VOLUME-TONE-CONTROL-KNOB-/320811066207?pt=Guitar_Accessories&hash=item4ab1d4635f
Logged
kato
Posts: 74


neat wiring is for beginners


Re: Pictures!
« Reply #19347 on: May 07, 2012, 12:39:41 PM »


They're all aluminum with a set screw. Total overkill for my slacker build with graphics printed on recycled paper. I didn't know I was supposed to use coated paper!!  Cry  I should probably replace them with plastic knobs for consistency. Smiley  Anyway, if they don't need to be all metal, All Electronics has this one for 1.75..
Logged

If school won't teach you how to fight for what's needed
They're teaching you to go through life and get cheated.
~arph
Posts: 1437


Arnoud P. - The Netherlands


Re: Pictures!
« Reply #19348 on: May 07, 2012, 02:59:31 PM »

John,

I just know that someday I'll buy one of your pedals just to put it on display in my living room. And build a true bypass box for it so I don't have to step on it if i want to use it.
Logged
davent
Posts: 2046


dave c. -Hammer Mtn. ON


Re: Pictures!
« Reply #19349 on: May 07, 2012, 05:15:21 PM »

Thanks guys!  It is pretty much as Earthscum described, apply your acrylic medium to the enclosure, lay your reversed laser/photocopy image into the wet medium, burnish it smooth, let dry and then wet the back of the image and rub the paper away. Simple as that!  Slacker's link has a good description of using acrylics (as well as other methods) to do the toner transfers as well as transfers with inkjet images. Haven't tried any of the other methods for transferring or transferring inkjet images. I'll be taking info on acrylics from that article to improve on what i've tried.

... Is it the same sort of technique they talk about here http://www.ebsqart.com/Education/Articles/Mixed-Media-and-Collage/9/Live-Studio-Image-Transfer/37/ sounds like fun.

From the various articles/videos i've seen, there're all kinds of acrylic mediums being used, gels, fluids and pastes even just straight acrylic paint. I painted the box let it dry then used Golden's GAC 200 as the acrylic transfer medium, it's sold as a hardener/adhesion promoter for mixing into their other products, in liquid it's milky but dries clear and sandable hard. http://www.goldenpaints.com/technicaldata/gac100s.php  Also tried the GAC 200 as an edge sealer when masking/painting and it worked great.

I treated the transfers like decals and cut them down so there was little excess paper around the image and that resulted in a visible edge (which was one of the reasons to pursue an alternative to waterslide decals) where the medium squeezed out as well as i'm sure a good source for the paper fibres that got trapped in the medium. Wiped up the excess but obviously didn't get it all up. So leave lots of extra paper around the image. For burnishing i just put a piece of wax paper over the image paper and rubbed with my finger or piece of paper towel, worked ok but could have been better, i'm going to invest in a brayer.  Going to try removing the image paper as described in slackers link, i was overly aggressive to start and not using enough water, even so the transfers held up surprisingly well, stood up to scouring pads and light sanding, tough.

I've tried the Varathane (waterbased polyurethane) on a couple pedals over the years and it never truly goes water clear, a faint milky haze remains, you can really notice it over the colours of the enclosure baseplate. Trying out Polycrylic on a pedal i'm finishing up now and so far it seems much better...  still not as good as the StewMac waterbased lacquer i've run out of, the lacquer is totally clear and new coats of lacquer melt into the previous coats which makes life simplier when it comes time to level sand the clearcoat.

Take care all!
dave
Logged

"Turn it up to 10 and rip off the knob."- Patterson Hood
azrael
Posts: 728



Re: Pictures!
« Reply #19350 on: May 07, 2012, 06:34:13 PM »

Wow, seems interesting! Any chance of writing a tutorial?
Logged
cloudscapes
Posts: 769


Etienne B


Re: Pictures!
« Reply #19351 on: May 07, 2012, 09:08:25 PM »



Logged

~~~~~~~~~~~~~~~~~~~~~~
{DIY blog}
{www.dronecloud.org}
davent
Posts: 2046


dave c. -Hammer Mtn. ON


Re: Pictures!
« Reply #19352 on: May 07, 2012, 09:13:02 PM »

Those are gorgeous!!!
Logged

"Turn it up to 10 and rip off the knob."- Patterson Hood
darron
Posts: 2309


Melbourne, Australia


WWW
Re: Pictures!
« Reply #19353 on: May 08, 2012, 12:53:39 AM »

amazing. amazing. life seems so much more beautiful now. thank you.
Logged

Blood, Sweat & Flux. Pedals made with lasers and real wires!
diydave
Posts: 96


WWW
Re: Pictures!
« Reply #19354 on: May 08, 2012, 01:09:34 AM »

This is just amazing!
Last pedal I've build, I've just glued my print (which was printed on fotopaper) on the box and sprayed it with clearcoat. Worked rather well.



But this is stunning.
Logged
rousejeremy
Posts: 1677


Jeremy Rouse


WWW
Re: Pictures!
« Reply #19355 on: May 08, 2012, 11:10:21 AM »

It's always a good day when Cloudscapes posts pictures
Logged

Consistency is a worthy adversary

www.jeremyrouse.weebly.com
midwayfair
Posts: 1678


Jon P


WWW
Re: Pictures!
« Reply #19356 on: May 08, 2012, 11:17:14 AM »



It is a rotary for the shape w/ LEDs? This is very cool.
Logged

My band, Midway Fair: www.midwayfair.org. Myself's music and things I make: www.jonpattonmusic.com. DIY pedal demos: www.youtube.com/jonspatton. PCBs of my Bearhug Compressor and Cardinal Harmonic Tremolo are available from http://www.1776Effects.com!
cloudscapes
Posts: 769


Etienne B


Re: Pictures!
« Reply #19357 on: May 08, 2012, 12:23:18 PM »

its just a pot. a microcontroller translates the pot value to which of the 5 leds blink. among doing other things
Logged

~~~~~~~~~~~~~~~~~~~~~~
{DIY blog}
{www.dronecloud.org}
Slade
Posts: 845

Fernando R. from Chile


WWW
Re: Pictures!
« Reply #19358 on: May 08, 2012, 08:38:11 PM »

Stunning artwork, Etienne! Really beautiful.
Logged

bluebunny
Posts: 1620


Marc B.


WWW
Re: Pictures!
« Reply #19359 on: May 09, 2012, 10:26:58 AM »

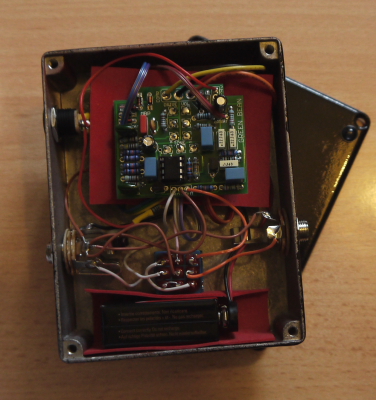

Here's my Madbean "Green Bean" (TS clone, and then some):


(Not decided quite what to do with the "floating board" yet, and must do something with those horrible switch washers.  Clip the tabs and paint 'em, I think.)

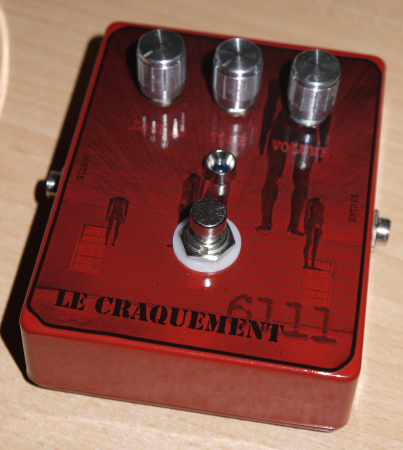

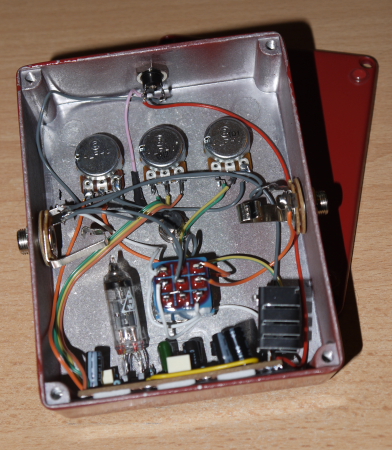

And this is Rick's "Le Craquement 6111" tube thang:


Both sound great!  And what is it with Rick's designs that I just have to build them??  Wink
