Slade
: 845

Fernando R. from Chile


Re: Pictures!
« #19480 : May 28, 2012, 02:05:00 PM »

DualDelay.

Delay A: 500ms - No tails
Delay B: 1s - Tails (thanks slacker!) always on.
Common controls: Level and Tone
Switcheable controls: Time and Repeats

I took anonymousfacelesscoward layout for the Echobase and modded it to add my mods and keep the CD4066 in place for the tails.
It was a PITA to build, many things changed after first wiring... but in the end it worth it.







Cheers!
Fernando.-
« : May 28, 2012, 02:43:40 PM Slade »

p_wats
: 289


Paul W.


Re: Pictures!
« #19481 : May 28, 2012, 03:13:04 PM »

DualDelay.

Delay A: 500ms - No tails
Delay B: 1s - Tails (thanks slacker!) always on.
Common controls: Level and Tone
Switcheable controls: Time and Repeats

I took anonymousfacelesscoward layout for the Echobase and modded it to add my mods and keep the CD4066 in place for the tails.
It was a PITA to build, many things changed after first wiring... but in the end it worth it.

Amazing!

I just built a delay too, though not nearly as impressive. It's guitarPCB.com's D'lay with a momentary stomp for some extra warp mods:





There's a video demo and more details here (including an old gas can amp I found at a thrift store).


Jdansti
: 4633


John


Re: Pictures!
« #19482 : May 28, 2012, 03:44:38 PM »

Cool delays Fernando and Paul!

R.G. Keene: EXPECT there to be errors, and defeat them...
midwayfair
: 1893


Jon P


Re: Pictures!
« #19483 : May 28, 2012, 05:57:58 PM »

That dual delay's enclosure is aMAZing.

Here's the second thing I boxed up this weekend:



I might touch up the border once the clear coat dries. Edit: And fix that e. I didn't spell it wrong, I didn't. It just looks wrong. :P
« : May 29, 2012, 08:28:09 AM midwayfair »

My band, Midway Fair: www.midwayfair.org. Myself's music and things I make: www.jonpattonmusic.com. DIY pedal demos: www.youtube.com/jonspatton. PCBs of my Bearhug Compressor and Cardinal Harmonic Tremolo are available from http://www.1776Effects.com!
guitarmageddon
: 156



Re: Pictures!
« #19484 : May 28, 2012, 06:08:54 PM »

That delay is jaw dropping Fernando...

Here's my Madbean Slow Loris (rat) with led/none/BS170 clippers, texture (Ruez on a pot) and a clean blend (Dano's buff'n'mix on the vero)




codtone.com
deadastronaut
: 10419


Rob H. LONDON


Re: Pictures!
« #19485 : May 28, 2012, 09:05:03 PM »

@pyro:  nice looking hot silicon. :icon_cool:

@guitarmageddon:  i like the rough n ready etch style you've developed... :icon_cool:

@slade:

http://www.bmstores.co.uk/products/terry-s-all-gold-milk-chocolate-200g-235690

 :icon_mrgreen:

edit:
http://www.youtube.com/watch?v=mv87TojQ7rQ
« : May 29, 2012, 02:01:04 AM deadastronaut »

http://www.youtube.com/user/100roberthenry
http://deadastronaut.wix.com/index

^ CHASM REVERB / TREMSHIFTER / FAZE FILTER/ABDUCTOR II DELAY pcb's + WAH LIGHT PLATES.
ca cat
: 86



Re: Pictures!
« #19486 : May 28, 2012, 11:22:24 PM »

Long time no... posting from me :)

Couple of new onef from the workshop:

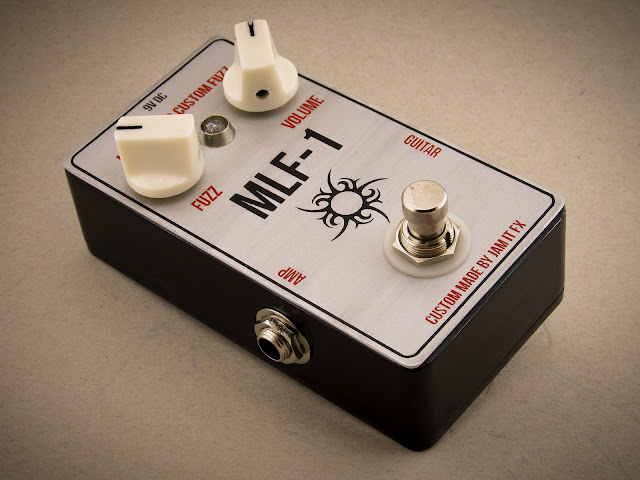

A Fuzz face / Bonamasa Fuzzface hybrid, based on several schematics, found on the web. With charge pump for negative ground, so itc can be powerd by sandard, boss like power. Vintage Russian germanium  mojo inside :)  Works best with all controls on max. Not a willd fuzz, but a nice fuzzy, warm boost/drive sound

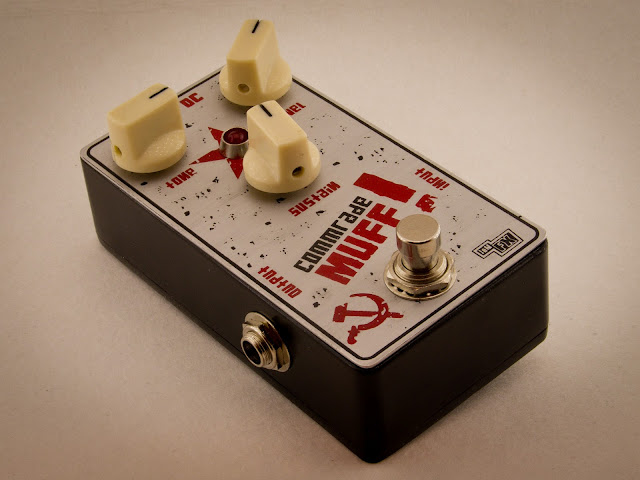

Russian muff variant - Commrade Muff

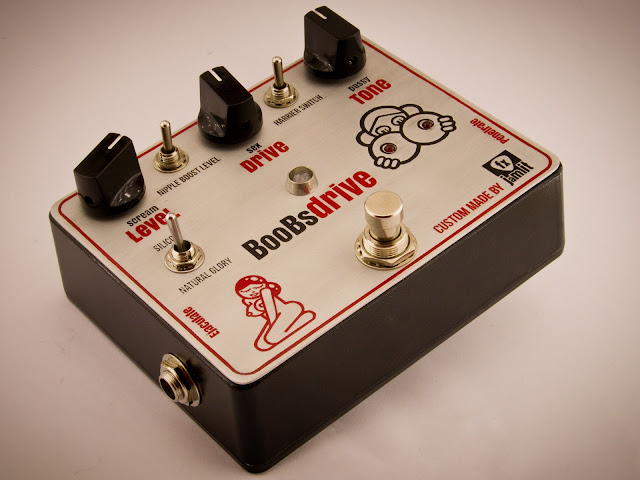

Real pedal porn :) Boobs drive; TS variant, with diferent fat settings, SI/LED clippers and Stock/keeley switch. When the LED clippers are engaged, the nipples flash  :icon_biggrin:

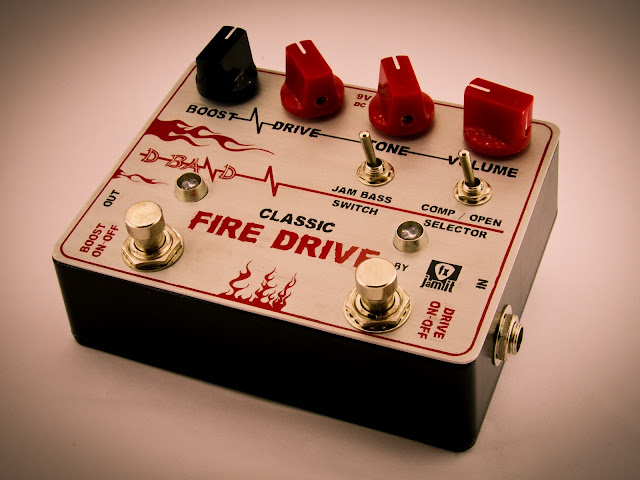

Another TS variant with added  boost stage after the drive:


And a fuzz factory:

Jamin' with JaM IT FX - www.jamitfx.com
deadastronaut
: 10419


Rob H. LONDON


Re: Pictures!
« #19487 : May 28, 2012, 11:28:26 PM »

ya gotta love flashing nips!... :icon_eek: :icon_cool:

http://www.youtube.com/user/100roberthenry
http://deadastronaut.wix.com/index

^ CHASM REVERB / TREMSHIFTER / FAZE FILTER/ABDUCTOR II DELAY pcb's + WAH LIGHT PLATES.
kato
: 74


neat wiring is for beginners


Re: Pictures!
« #19488 : May 29, 2012, 12:34:30 AM »

ya gotta love flashing nips!... :icon_eek: :icon_cool:

OMG, the thematic labeling of the boobsdrive cracked me up, especially "penetrate / ejaculate."   :icon_biggrin:

If school won't teach you how to fight for what's needed
They're teaching you to go through life and get cheated.
tasos
: 792



Re: Pictures!
« #19489 : May 29, 2012, 01:41:49 AM »

Hahahah this is sooo funny! ;D
Is this pedal custom ordered?
ca cat
: 86



Re: Pictures!
« #19490 : May 29, 2012, 01:43:01 AM »

Hahahah this is sooo funny! ;D
Is this pedal custom ordered?

yes, I only made the wish come true  :icon_lol:

Jamin' with JaM IT FX - www.jamitfx.com
Electric Warrior
: 468



Re: Pictures!
« #19491 : May 29, 2012, 04:48:42 AM »

BC183 Fuzz Ace:








Mojo works!
axemurderforhire
: 54


David Quinn


Re: Pictures!
« #19492 : May 29, 2012, 08:06:51 AM »

@Electric Wizard: What way is your foots witch wired?  (sorry still a noobie)
midwayfair
: 1893


Jon P


Re: Pictures!
« #19493 : May 29, 2012, 08:29:58 AM »

@Electric Wizard: What way is your foots witch wired?  (sorry still a noobie)

It's true bypass, he's just not using an LED.

My band, Midway Fair: www.midwayfair.org. Myself's music and things I make: www.jonpattonmusic.com. DIY pedal demos: www.youtube.com/jonspatton. PCBs of my Bearhug Compressor and Cardinal Harmonic Tremolo are available from http://www.1776Effects.com!
Electric Warrior
: 468



Re: Pictures!
« #19494 : May 29, 2012, 09:01:05 AM »

 and with grounded circuit input in bypass.  :)

Mojo works!
John Lyons
: 5769


Basic Audio


Re: Pictures!
« #19495 : May 29, 2012, 03:02:06 PM »

Nice one EW!


Octave down into a Tri/Ram muff with a feedback loop.






Kay Fuzz




Basic Audio Pedals
www.basicaudio.net/
~arph
: 1551


Arnoud P. - The Netherlands


Re: Pictures!
« #19496 : May 29, 2012, 08:19:13 PM »

Beautiful as always John... now where to get those knobs..
Skruffyhound
: 1266


Aston


Re: Pictures!
« #19497 : May 29, 2012, 10:54:56 PM »

Best etch we have seen from you for a while Fernando. Beautiful detail.
KrazyKarl
: 39

Karl T


Re: Pictures!
« #19498 : May 30, 2012, 06:21:04 AM »


Kay Fuzz




Looks great! What is it?
KrazyKarl
: 39

Karl T


Re: Pictures!
« #19499 : May 30, 2012, 06:22:25 AM »

@Electric Warrior

Also very nice! Where did you get your bc183s?
