Author Topic: Show me your 1590A enclosures/pedals...  (Read 808728 times)

0 Members and 1 Guest are viewing this topic.

Pushtone

Re: Show me your 1590A enclosures/pedals...
« Reply #20 on: January 30, 2008, 03:17:45 PM »

What program did you use to get that drawing in the last picture? I've been looking for something to use. '




Adobe Illustrator. Not a CAD program but I can get 1/16th tolerance using the grid, rulers and guide lines.

Here's how I made it...
http://www.diystompboxes.com/smfforum/index.php?topic=64636.msg510928#msg510928

Dave
It's time to buy a gun. That's what I've been thinking.
Maybe I can afford one, if I do a little less drinking. - Fred Eaglesmith

Mark Hammer

Re: Show me your 1590A enclosures/pedals...
« Reply #21 on: January 30, 2008, 04:00:08 PM »
I draw onlookers' attention to the absence of surface-mount components anywhere.

Zach...eat your heart out! :icon_lol:  Although, here we "crouch on the shoulders of midgets", since you showed us it could be done!

dano12

Re: Show me your 1590A enclosures/pedals...
« Reply #22 on: January 30, 2008, 04:09:11 PM »




:)

QSQCaito

  • Poster2
  • **
  • Posts: 862
  • Total likes: 0
  • Diego Andrés. Buenos Aires, Argentina.
Re: Show me your 1590A enclosures/pedals...
« Reply #23 on: January 30, 2008, 04:58:11 PM »
Hahahhaahah dig in that tube.
D.A.C

andrew_k

Re: Show me your 1590A enclosures/pedals...
« Reply #24 on: January 30, 2008, 05:46:46 PM »
Bwaaahahahaa!

That's truly absurd Dano. You managed to squeeze a battery in one, but that's probably because everything else is on the outside.  :icon_eek:

This thread has provided everything I hoped for; thanks guys. Tiny enclosures FTW  :icon_mrgreen:

ADR

Re: Show me your 1590A enclosures/pedals...
« Reply #25 on: January 31, 2008, 02:33:39 AM »
A modified fat boostered.

I perf'd it. (The trim pot is for the low end roll off.)




DougH

Re: Show me your 1590A enclosures/pedals...
« Reply #26 on: January 31, 2008, 12:37:04 PM »
I love the "off-axis" jacks too.

Man, you guys have really got me inspired. I'm going to have to give this a try. :icon_wink:
"I can explain it to you, but I can't understand it for you."

beatstrat

Re: Show me your 1590A enclosures/pedals...
« Reply #27 on: January 31, 2008, 02:29:13 PM »
I've got more 1590A enclosures, but haven't put the time into building anything into them.  I love the crazy looks I get at gigs when cats see mine on my pedalboard.

I've been trying to squeeze a TS-type (without the buffers) into one and haven't been able to do it yet.  Totally pissed me off when I saw Dano stuffed a 9V Battery AND the circuit into one... ugh.  Must try harder and be more creative with my layout(s).

Good work by all and some really neat builds.

DougH

Re: Show me your 1590A enclosures/pedals...
« Reply #28 on: January 31, 2008, 02:50:24 PM »
The thing I just noticed, though, is that those 1590A's are expensive. Well, that is compared to a Taiwanese 1590B, 1590BB. or 125A clone. I guess it's been a while since I bought one, but Hammond enclosures have gotten ridiculously expensive- $18 for a 1590BB at Mouser (!). Huh?!? The 1590A's are $8 or so in qty of 1. Compare that to $5-$8 for the Taiwanese stuff.

So I guess my point is there is no economic reason to use a 1590A. It will save pedalboard space, is novel, and the challenge may be worth it. But I was surprised at Hammond prices... :icon_eek:
"I can explain it to you, but I can't understand it for you."

beatstrat

Re: Show me your 1590A enclosures/pedals...
« Reply #29 on: January 31, 2008, 03:06:52 PM »
I hear ya ($$) - definitely only a novelty for me.

ADR

Re: Show me your 1590A enclosures/pedals...
« Reply #30 on: January 31, 2008, 04:51:09 PM »
I buy the hammonds because they are manufactured in my area (southern ontario) and are plentiful everywhere.

I like the A's because they take up little real estate... especially for two stomper amp switches. I replaced the vox ac30 reverb/tremolo switch with a 1590A at the top of my pedalboard.

For pedals sitting side by side, there is a practical limitation in to how close one can pack these thing side by side.

The way I space them, they tend to take up around 2/3rds the space of a boss pedal, because my feet are big and I don't want to accidentally hit the wrong stomper.

But they do have that 'cool' factor when you see how small they are. That's primarily why I built a couple of them... to be different.

juse

Re: Show me your 1590A enclosures/pedals...
« Reply #31 on: January 31, 2008, 05:46:57 PM »


:)

Nice Dano! What is that? Is it a smaller nano (Dano's Nano), or is it a boost or preamp or od? Whatever it is, I love it!

ambulancevoice

Re: Show me your 1590A enclosures/pedals...
« Reply #32 on: August 12, 2008, 06:52:42 PM »


:)

Nice Dano! What is that? Is it a smaller nano (Dano's Nano), or is it a boost or preamp or od? Whatever it is, I love it!

its actually an amp!!!
http://www.beavisaudio.com/Projects/HalfWattClassA
Open Your Mouth, Heres Your Money

any

Re: Show me your 1590A enclosures/pedals...
« Reply #33 on: August 12, 2008, 08:31:29 PM »

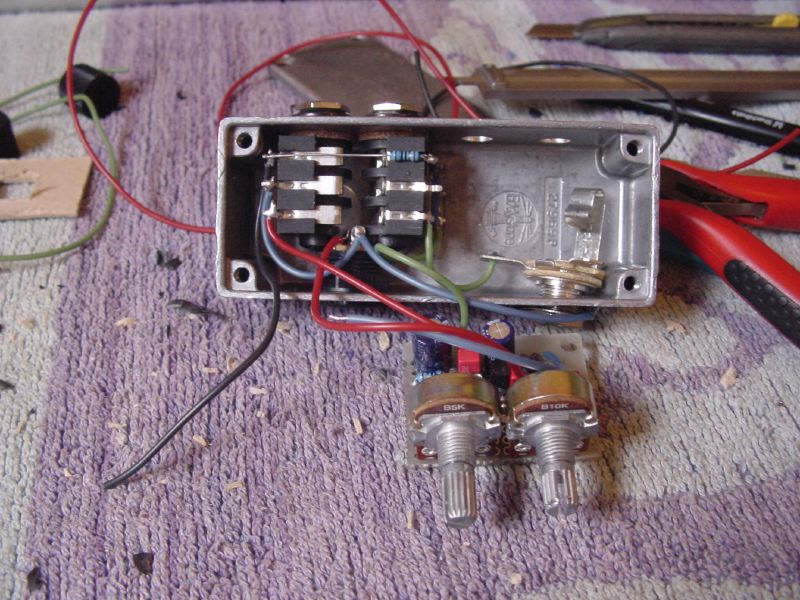

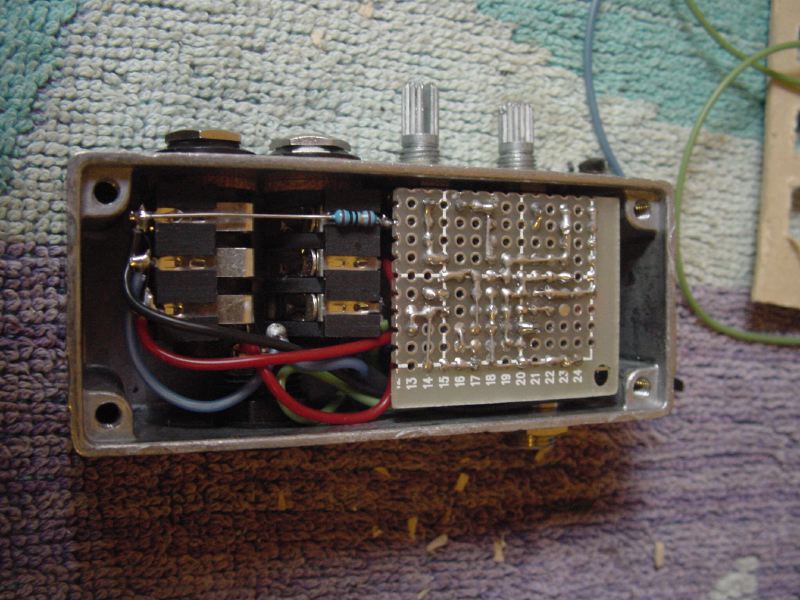

Not to brag, but a bit proud none the less... 2 pots, 2 switches, and an external LDR in addition to the usuals.
My Mayhem Fuzz/trem/ringmod



More recent, my NightFlyer Practice/headphone amp



no, it's supposed to sound that way...
FOR SALE: Custom TaniWha Fuzz Face PCB's, more here: TaniWha Fuzz Face PCB

DougH

Re: Show me your 1590A enclosures/pedals...
« Reply #34 on: August 13, 2008, 07:13:09 AM »
More recent, my NightFlyer Practice/headphone amp


Your artwork is beautiful!!  :icon_cool:
"I can explain it to you, but I can't understand it for you."

any

Re: Show me your 1590A enclosures/pedals...
« Reply #35 on: August 13, 2008, 06:00:53 PM »
Your artwork is beautiful!!  :icon_cool:

Thanks Doug, I'm a Graphic Designer / Illustrator by trade btw...
no, it's supposed to sound that way...
FOR SALE: Custom TaniWha Fuzz Face PCB's, more here: TaniWha Fuzz Face PCB

andrew_k

Re: Show me your 1590A enclosures/pedals...
« Reply #36 on: August 13, 2008, 06:24:37 PM »
Not to brag, but a bit proud none the less... 2 pots, 2 switches, and an external LDR in addition to the usuals.
My Mayhem Fuzz/trem/ringmod


And so you should be proud! That's a heck of a lot of hardware to squeeze in there. How's it sound?

ayayay!

Re: Show me your 1590A enclosures/pedals...
« Reply #37 on: August 14, 2008, 09:32:36 AM »
Hey any, what kind of perfboard is that in your headphone amp?  I'm looking for that kind of board.
The people who work for a living are now outnumbered by those who vote for a living.

davent

Re: Show me your 1590A enclosures/pedals...
« Reply #38 on: August 14, 2008, 11:35:59 AM »
Hey any, what kind of perfboard is that in your headphone amp?  I'm looking for that kind of board.

Not 'any' but it looks like the stuff Small Bear sells.

http://www.smallbearelec.com/Detail.bok?no=71

or

http://www.smallbearelec.com/Detail.bok?no=72

"If you always do what you always did- you always get what you always got." - Unknown

DougH

Re: Show me your 1590A enclosures/pedals...
« Reply #39 on: August 14, 2008, 11:45:15 AM »
Your artwork is beautiful!!  :icon_cool:

Thanks Doug, I'm a Graphic Designer / Illustrator by trade btw...

My wife does that too, which is why she does my artwork, most of the time. :icon_wink:
"I can explain it to you, but I can't understand it for you."
