Pictures!

[mikeford]

Parasit Studios Mega Multiwave synth

[mikeford]

Madbean Mandroid

[temol]

Turns out that Pharaoh was not the last one in 2019...

T-drive clone.



T.

[davent]

That looks great! So clean inside and out, nice enclosure.
dave

[mikeford]

Deadendfx PLLONE. Nice Schumann resonator clone with all the trimmings! Now, I need to build a sequencer for the CV input................

[paul.creedy]

My last build of 2019, a small Noise Swash clone.

[duck_arse]

that's soooo last year, paul. I'm supposed to be building 2 of those at some stage, so can we have some sounds from, please?

[rankot]

My first build in 2020: Univox Superfuzz. Did it with CA3046 transistor array. Set trimmer so I have the same voltage (1.803V) on both bases of splitter transistors. Now ONLY to make a box (together with 10 others)

[willienillie]

My first Univibe.  "Forum-Vibe" PCB from Classic Amplification.  Lamp and LDRs from Small Bear.  Five NOS Matsushita 2SC828s in there, all other transistors are 2N3904s, except Q1 which is an Amperex A104 (TO-18).

No paint or graphics, weather ain't permittin'.  1590XX.

Light shield was the hardest part.

[bluebunny]

Neat innards.  Roll on the warmer weather - I have enclosures to paint too.  Even though it's very mild here (Berkshire, UK), it's still not really warm enough for painting.

[rankot]

Even though it's very mild here (Berkshire, UK), it's still not really warm enough for painting.

That's why I always buy pre-painted enclosures from Tayda. Just print a decal and that's it.

[temol]

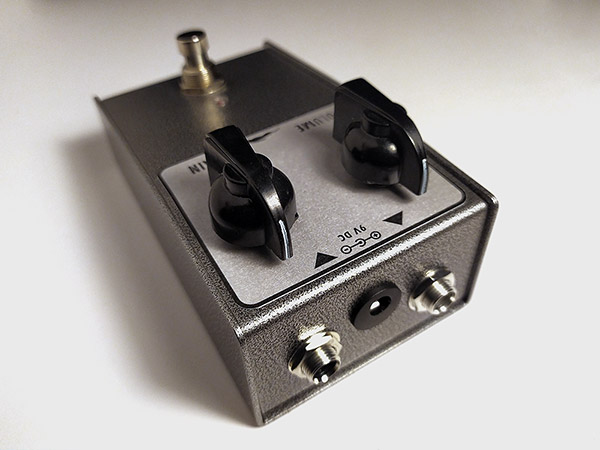

Now it's my turn. First finished in 2020.

FuzzFace(ish) and Life Pedal (EQD)





T.

[duck_arse]

Temol's boxes are my heroes.

[deadastronaut]

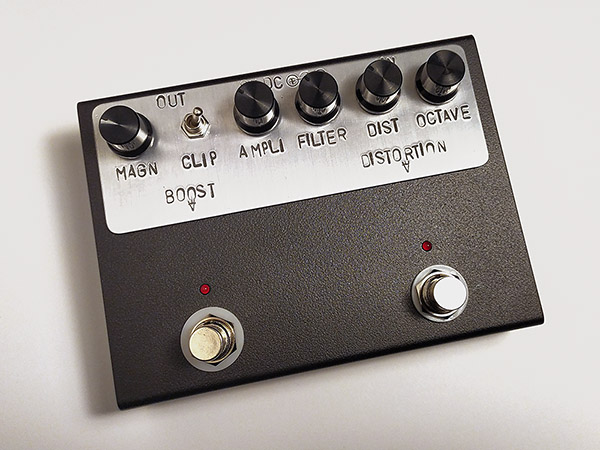

custom jobby for an yngwie fan........

[rankot]

My Superfuzz, work in progress. Internals above: https://www.diystompboxes.com/smfforum/index.php?topic=36392.msg1169938#msg1169938

[davent]

Even though it's very mild here (Berkshire, UK), it's still not really warm enough for painting.

That's why I always buy pre-painted enclosures from Tayda. Just print a decal and that's it.

No clear coating of the decals?

dave

[rankot]

No clear coating of the decals?

dave

Sometimes. But I'm not that good in using spray paint, so it looks much better without it

[rankot]

Y-triggered filter:



You can find PCB files and schematic (with complete discussion) here: https://www.diystompboxes.com/smfforum/index.php?topic=113930.msg1170171#msg1170171

[paul.creedy]

While one or two look ok, I've been getting a bit bored with my white lettering on a black background, so I've been looking for ways to add a bit more colour etc.

I picked up some decoupage paper off ebay and stuck it over a white primer background, with some clear satin to seal it.

I put some white lettering on but it got a bit lost so I cleaned (most of) it off and put some black on instead.

Overall I think I like it. I've got three more variations on that pattern and a selection of others (puzzle pieces, llamas, cats, big dots) which I'll add to this thread as and when I get them done.

[EBK]

I've shown this in some states of incompletion before, but I finally managed to finish it after more than two years trying.    It is an Aion Blueshift in a 1590B.
